Brilliant Strategies Of Info About How To Step Down 6V 5V

The Curious Case of 6V vs. 5V

1. Understanding the Voltage Difference

So, you've got a situation. A device that craves 5V, but you're staring at a 6V power source. It's like offering a double shot of espresso to someone who just wants a regular coffee — a recipe for potential jitters (or, in this case, fried electronics!). Don't panic! We're here to gently guide that voltage down a notch. Think of it as voltage yoga, bending it to your will... in a safe and electrically sound way, of course.

Why is this even a problem? Well, electronics are finicky. They're designed to operate within a specific voltage range. Feed them too much power, and you risk damaging them, sometimes permanently. Imagine trying to force a square peg into a round hole. It just doesn't work, and it's usually messy. So, respecting the voltage requirements of your devices is crucial for their longevity and your peace of mind.

Now, lets be clear, you wouldn't want to simply connect a 6V supply directly to a 5V device. It's a bit like playing Russian roulette with your electronics. Sure, maybe nothing will happen this time, but eventually, you're going to get burned. The excess voltage can cause overheating, component failure, and, in extreme cases, even a small fire (though we're aiming to avoid pyrotechnics here!).

The key takeaway here is: Voltage matters. Treat it with respect, and your electronic gadgets will reward you with years of faithful service. Ignore it, and you might be reaching for your wallet to buy replacements sooner than you'd like. We're all about saving money and preventing electronic meltdowns, so lets get down to brass tacks.

The Resistor Route

2. Using Resistors for Voltage Division

One of the most basic methods to step down 6V to 5V involves using a resistor. Or rather, a pair of resistors in what's called a voltage divider circuit. Imagine a waterfall — the resistors act like strategically placed rocks that slow down the water (voltage) flow. By carefully selecting the resistor values, you can control how much voltage is "dropped" along the way, delivering a nice, gentle 5V to your device.

Here's the catch: resistor voltage dividers are sensitive to the load. If the current draw from your 5V device fluctuates (which it almost certainly will), the output voltage will also fluctuate. It's like trying to control the water flow with rocks that keep changing size. This means it's not ideal for devices that need a stable and consistent 5V supply. Imagine trying to balance a precarious stack of pancakes; any slight wobble can send the whole thing tumbling down.

Furthermore, resistors dissipate power as heat. The bigger the voltage drop and the more current flowing through them, the hotter they get. This means you need to choose resistors with an appropriate power rating to prevent them from overheating and potentially failing. Think of it like a tiny electric heater. If it gets too hot, things could go wrong.

Despite its limitations, a resistor voltage divider can be a quick and dirty solution for low-power applications where a precise 5V is not absolutely critical. However, for more demanding applications, you'll want to explore more robust and reliable options.

The Zener Diode Solution

3. Employing Zener Diodes for Regulation

Enter the Zener diode. This nifty little component is designed to "clamp" the voltage at a specific level. It's like having a tiny voltage bouncer who only lets voltages below a certain threshold pass through. When the voltage exceeds its Zener voltage (in this case, 5V), it starts conducting current, effectively shunting the excess voltage to ground.

Using a Zener diode is a step up from a simple resistor divider because it provides some degree of voltage regulation. Meaning, it attempts to maintain a relatively constant 5V output even if the input voltage or the load current changes slightly. It's like having a more sophisticated water control system that automatically adjusts to maintain a consistent flow rate.

However, Zener diodes aren't perfect. They can be a bit noisy (introducing small voltage fluctuations) and they still dissipate power as heat. Also, they generally require a series resistor to limit the current flowing through them. Without the resistor, the Zener diode could be overwhelmed and potentially damaged. It is like having a pressure relief valve on your water tank.

While Zener diodes offer better regulation than simple resistor dividers, they're still not the most efficient or accurate solution for stepping down 6V to 5V. For more demanding applications, you'll likely want to consider a dedicated voltage regulator.

The Voltage Regulator IC

4. Utilizing Integrated Circuit Regulators

This is where things get serious. A voltage regulator IC (Integrated Circuit) is a dedicated chip designed specifically to maintain a stable and accurate output voltage, regardless of fluctuations in the input voltage or the load current. Think of it as a tiny, sophisticated power plant on a chip, ensuring a consistent and reliable power supply for your device.

These ICs are incredibly efficient and provide excellent voltage regulation. They use internal feedback loops to constantly adjust the output voltage, ensuring it remains rock-solid even under varying conditions. It's like having a self-regulating thermostat that keeps the temperature perfectly constant, no matter what's going on outside.

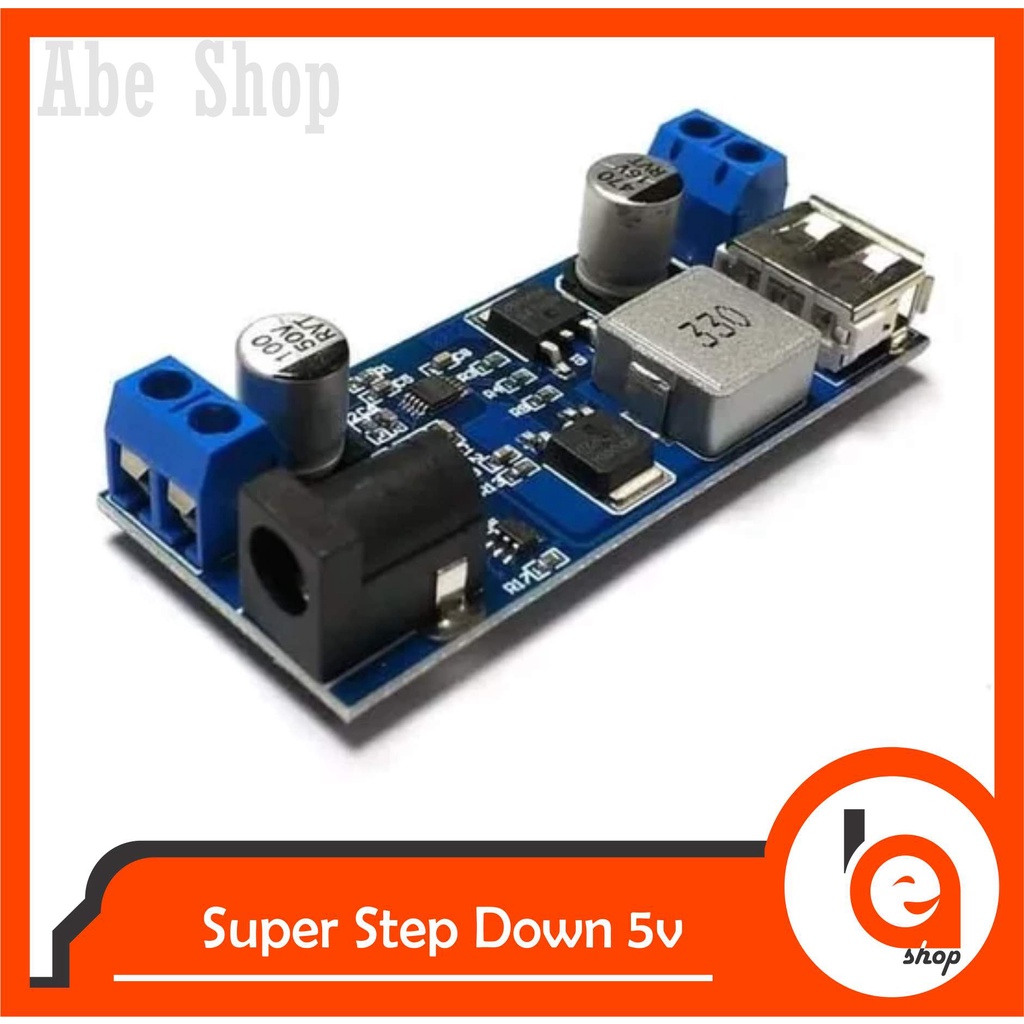

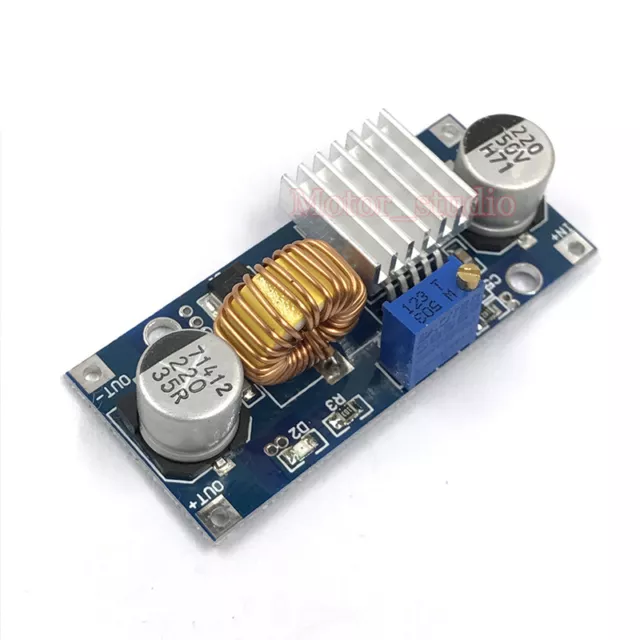

There are various types of voltage regulator ICs available, including linear regulators and switching regulators. Linear regulators are simpler to use but can be less efficient, especially when the voltage difference between the input and output is large. Switching regulators are more complex but offer much higher efficiency, making them ideal for battery-powered applications.

The LM7805 is a very common example. The cost might be a factor. While other components are cheap, using a voltage regulator IC may increase your overall costs. Also, be aware that choosing the right regulator and connecting it properly are crucial for its performance and reliability. Always refer to the datasheet for specific instructions and recommendations. And double-check your wiring. You don't want to send smoke signals from your breadboard.

Choosing the Right Method

5. Factors to Consider When Selecting a Method

So, which method should you choose to step down 6V to 5V? The answer, as with many things in life, is "it depends." It depends on your specific application, the power requirements of your device, the accuracy you need, and your budget.

If you need a simple and inexpensive solution for a low-power application where precise voltage regulation isn't critical, a resistor voltage divider might suffice. Just be mindful of the limitations and ensure your resistors are appropriately sized to handle the power dissipation. Remember, safety first!

For applications that require some degree of voltage regulation, a Zener diode can be a decent option. However, keep in mind that it's still not the most efficient or accurate solution. Think of it as a band-aid solution rather than a long-term fix.

For most applications, especially those that require a stable and accurate 5V supply, a voltage regulator IC is the best choice. While it might be slightly more expensive and require a bit more wiring, the benefits in terms of performance and reliability are well worth it. After all, a little extra effort can save you from potential headaches (and fried electronics) down the road.

Frequently Asked Questions

6. Answers to Common Voltage Conversion Questions

Q: Will connecting a 6V battery directly to a 5V device immediately destroy it?
A: Not necessarily immediately, but it significantly increases the risk of damage over time. Think of it as slowly poisoning your device. It might work for a while, but the excess voltage will eventually take its toll.

Q: Can I use multiple resistors in series or parallel to create a custom voltage divider?
A: Absolutely! You can use series and parallel combinations to achieve the desired resistance values for your voltage divider. Just remember to calculate the equivalent resistance accurately.

Q: Where can I find datasheets for voltage regulator ICs?
A: Datasheets are readily available online from the manufacturer's website (e.g., Texas Instruments, ON Semiconductor, STMicroelectronics). Just search for the IC part number followed by "datasheet".

Q: What does "load current" mean?
A: Load current is the amount of current drawn by the device that's being powered (the "load"). It's like how much water a faucet is using. Different devices will draw different amounts of current, and this can affect the performance of your voltage regulator circuit.
