Decoding the Cisco SFP+ Mystery

1. Understanding SFP+ and Gigabit Ethernet Compatibility

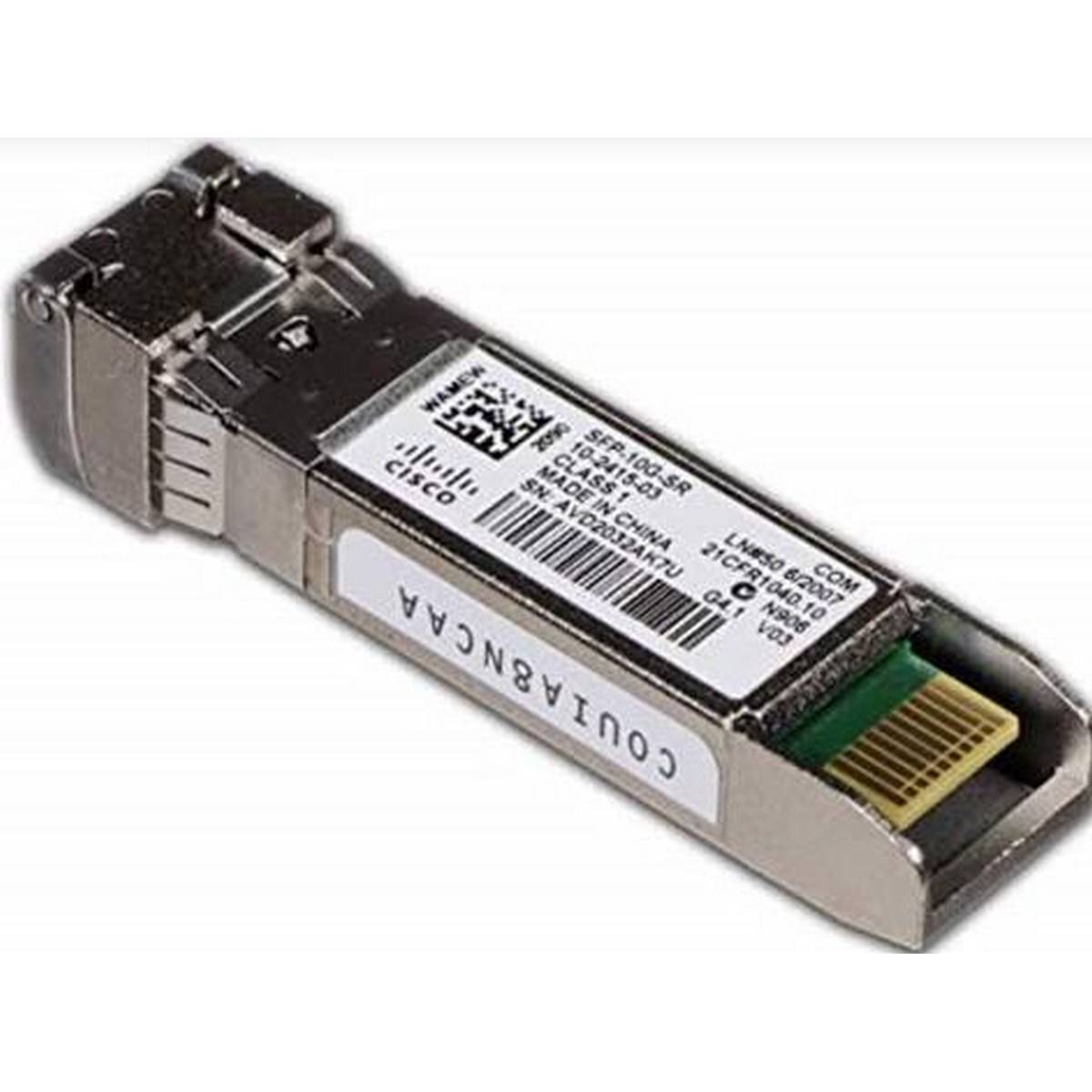

Ever wondered if that fancy Cisco 10G SFP+ transceiver you've got kicking around can actually handle good old 1 Gigabit Ethernet (1G)? It's a question that pops up quite frequently in the networking world, and the answer, thankfully, isn't a straight "yes" or "no." Instead, it's a bit more nuanced — like figuring out the perfect coffee blend. But don't worry, we'll get to the bottom of it!

At its core, the question revolves around compatibility. SFP+ (Small Form-factor Pluggable Plus) transceivers are designed for 10 Gigabit Ethernet. Gigabit Ethernet, well, that's the stuff many home networks and smaller businesses are built on. They're different generations of technology, so naturally, you might wonder if they can play nicely together. The good news is that, sometimes, they can.

The key here is to look at the specific Cisco equipment and SFP+ module in question. Not all hardware supports auto-negotiation down to 1G. Some devices are strictly 10G only. Imagine trying to fit a square peg in a round hole — it just won't work. However, if your Cisco switch does support it, it's like having a Swiss Army knife for networking; it's versatile and can handle multiple speeds.

So, before you go ripping out cables and reconfiguring your entire network, take a peek at the device specifications. Check the datasheet for your Cisco switch and the SFP+ module itself. Look for mentions of 1G support or auto-negotiation. If you see it, you're likely in business. If not, you might need a dedicated 1G SFP transceiver instead.

The Auto-Negotiation Dance

2. The Magic Behind Speed Adaptation

Auto-negotiation is the secret sauce that allows a 10G SFP+ to potentially work at 1G. It's essentially a communication protocol where the devices at each end of the connection try to figure out the best speed and settings they can both handle. Think of it as a digital handshake, where both sides politely ask, "Hey, what speeds can you do?"

When you plug in a 10G SFP+ into a port, and that port is connected to a 1G device, the auto-negotiation process kicks in. If everything is compatible, the SFP+ module will detect the 1G capability of the other device and adjust its speed accordingly. It's a bit like a car automatically downshifting when going uphill — it optimizes performance based on the situation.

However, there's a catch. Auto-negotiation isn't always guaranteed. Sometimes, the devices just don't "speak the same language" properly. This can be due to various factors, such as firmware versions, configuration settings, or even faulty hardware. It's like trying to order a coffee in a foreign country when you don't know the language — you might get something completely unexpected!

Therefore, it's crucial to configure your Cisco switch properly to enable auto-negotiation on the relevant ports. Consult the Cisco documentation for your specific device to find the correct commands and settings. Manually setting the port speed to 1G might also be an option, but this only works if the SFP+ module supports it, and the switch allows manual speed configuration. It's a balancing act to get everything working in harmony!

The Case of the Missing Compatibility

3. Scenarios Where Downward Compatibility Fails

Even with auto-negotiation, there are times when a 10G SFP+ simply refuses to play nice at 1G. This usually boils down to hardware limitations. Some SFP+ modules are specifically designed to operate only at 10G. They lack the internal circuitry or firmware necessary to support slower speeds. Think of it like trying to run a modern video game on an old computer — it's just not going to happen.

Another common cause of incompatibility is the switch itself. Not all Cisco switches support 1G operation on their SFP+ ports. Some are designed solely for 10G connectivity. This information should be clearly stated in the switch's documentation. Skimping on reading the documentation is a great way to guarantee yourself extra troubleshooting time.

Furthermore, even if both the SFP+ module and the switch theoretically support 1G, there might be configuration issues that prevent it from working. For example, auto-negotiation might be disabled on the port, or the port might be manually configured for a different speed. It's like having all the right ingredients for a cake but forgetting to turn on the oven!

So, what do you do in this situation? The best approach is to check the device specifications thoroughly. If you confirm that 1G support is not available, you'll need to use a dedicated 1G SFP transceiver. These are designed specifically for Gigabit Ethernet and will ensure proper compatibility. Sometimes, the right tool for the job is the only tool for the job.

Configuration Considerations

4. Tips for Successful Speed Negotiation

Alright, let's assume you've got compatible hardware — that's half the battle! Now, it's time to dive into the configuration. The specific commands and settings will vary depending on your Cisco switch model, but there are some general principles to keep in mind. It's like following a recipe; get the ingredients and steps right, and the outcome is much more likely to be delicious (or in this case, a stable network connection).

First, ensure that auto-negotiation is enabled on the relevant port. In Cisco IOS, this is typically done using the `speed auto` command within the interface configuration. This tells the switch to automatically detect and negotiate the speed with the connected device. If it isn't enabled, nothing is ever going to work like you expect it to.

Second, check for any conflicting configurations. For example, if the port is manually configured for a specific speed (e.g., `speed 1000`), it will override the auto-negotiation setting. Make sure to remove any manual speed configurations if you want auto-negotiation to work correctly. It's like trying to drive with both the accelerator and the brake pressed at the same time — not a good idea.

Third, consider updating the firmware on both the switch and the SFP+ module. Firmware updates often include bug fixes and compatibility improvements that can resolve issues with auto-negotiation. Think of it as giving your devices a software tune-up to ensure they're running at their best. A little maintenance can go a long way!

Troubleshooting Tips

5. Diagnosing and Resolving Compatibility Issues

Even with careful planning and configuration, things can sometimes go wrong. If you're having trouble getting a 10G SFP+ to work at 1G, don't despair! There are several troubleshooting steps you can take. Think of yourself as a network detective, gathering clues and piecing together the puzzle.

Start by checking the link status on the switch. Use the `show interface` command to verify that the port is up and connected. Look for any error messages or status indicators that might provide clues about the problem. Its the networking version of seeing if the power cord is plugged in.

Next, examine the switch's logs for any relevant error messages. Cisco devices often log detailed information about link negotiation failures and other issues. Analyzing these logs can help you pinpoint the root cause of the problem. Logs are a treasure trove of diagnostic information.

If possible, try swapping the SFP+ module with a known-good 1G SFP transceiver. This will help you determine whether the issue is with the SFP+ module itself or with the switch or the connected device. It's like swapping out a light bulb to see if the problem is the bulb or the lamp.

Finally, don't hesitate to consult the Cisco documentation or contact Cisco support for assistance. They have a wealth of knowledge and resources that can help you troubleshoot even the most complex networking problems. You don't have to go it alone!

FAQ

6. Quick Answers to Common Concerns

Still have questions? Here are some frequently asked questions to help clarify things further:

Q: Will any 10G SFP+ module work at 1G?
A: No, not all 10G SFP+ modules are designed to operate at 1G. Check the specifications for compatibility.

Q: How do I enable auto-negotiation on a Cisco switch?
A: Use the `speed auto` command within the interface configuration in Cisco IOS.

Q: What if auto-negotiation doesn't work?
A: Verify that both devices support 1G, check for conflicting configurations, and consider updating the firmware.

Q: Can I force a 10G SFP+ module to run at 1G?
A: If the module and switch support it, you might be able to manually configure the port speed to 1G. However, auto-negotiation is generally preferred.
